Commodity name: CW-M Series
Commodity ID: CW-M Series

▌Introduction

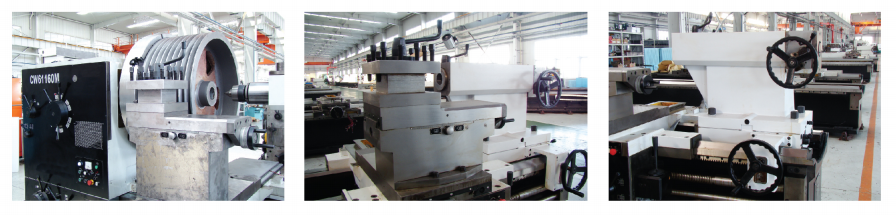

CW-M series horizontal lathe has mature structure, large power, strong rigidity and wide spindle speed regulation range, It is suitable for strong or high speed cutting. It can complete the cutting of inner and outer cylindrical surface, conical surface, end face, grooving, chamfering, dilling and tapping of various shaft and disc parts, and also can process metric thread, inch thread, modulus thread, diameter thread and taper thread. It shows superiority in processing large and complex parts.

▌Parameters

Specification	Unit	CW61100M	CW62100M	CW61125M	CW62125M	CW61140M	CW62140M	CW61160M	CW62160M
Max.swing over bed	mm	Φ1000		Φ1250		Φ1400		Φ1600
Max.swing over cross slide	mm	Φ630		Φ880		Φ1030		Φ1230
Max.swing over in gap	mm	-	Φ1400	-	Φ1650	-	Φ1800	-	Φ2000
Gap length	mm	-	772	-	772	-	772	-	772
Max workpiece length	mm	1500/2000/3000/4000/5000/6000(8000 for CW61)
Max workpiece weight	kg	6000(OP:8000 10000)
Width over bedways	mm	755
Spindle nose		A2-15
Spindle bore	mm	Φ130 OP:1600
Chuck size	mm	Φ1000		Φ1000		Φ1250		Φ1600
Taper of spindle bore		Metric 140
Max. Spindle torque	Nm	10.5kNm (22KW)
Spindle speed ranges	rpm	3.15-315 (21 speeds)
Spindle centre height	mm	500		625		700		800
Spindle motor power		22 OP 30
Tailstock quill diameter	mm	Φ160
Tailstock quill travel	mm	300
Tailstock quill taper		Metric 80
Longitudinal feed		0.1-12mm/rmp (56 kinds)
Cross feed	mm/rmp	0.05-6 mm/rmp (56 kinds)
Metric Pitch	mm	1-120 (52kinds)
Modular Pitch	mm	0.5-60(46 kinds)
Imperial Pitch	TPI	1/4-30(43 kinds)
Diametrical Pitch	DP	1/2-60(49kinds)
Max.tool shank size	mm	45*45
Travel of top slide	mm	300
Machine overall dimensions	mm	445018551889		445019552014		445020102164		445021102354
Machine weight	kg	9650/10100/11000/11900		10650/11100/12000/12900		11350/11800/12700/13600		12050/12500/13400/14300

Standard configurations

·4-way tool post ·4-way tool post ·Center usd on the tailstok (D116、MT6) ·Standard toolkit ·Spindle center and center sleeve ·φ50~φ470mm Steady rest (≥3000mm Available) ·φ50~φ220mm Follower rest (≥3000mm Available) ·Anchor bolt
Optional configurations

·Chuck guard ·Tool post guard ·Rear splash guard ·Taper-tuming attachment ·Thread dial ·DRO
