- Commodity name: CW-E Series
- Commodity ID: CW-E Series

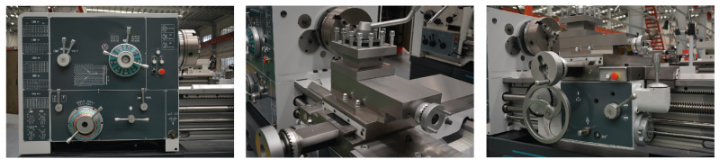

▌Introduction
CW-E Series horizontal lathes are capable of various turning applications, mainly used for 1.D. and 0.D. cylindrical face, taper surface and other parts that features rotating surface. The lathe is suited for face turning, grooving, parting, drilling and other popular metric, inch, module and diametral pitch threads. This machine is perfectly suitable for small volume production plant and machinery maintenance shops, and can machine a range of materials, including steel, cast iron and non-ferrous metals. Gap lathe features a removable gap, which is the main difference between horizontal lathe and gap lathe, and can be adjusted to machine larger or longer workplaces, thus suitable for process disk parts and irregular shaped parts. Various combinations of metric,imperial lathes with miscellaneous functions are available upon request.
▌Parameters
Specification Unit CW6163E CW6263E CW6180E CW6280E CW61100E CW62100E Max.swing over bed mm Φ630 Φ630 Φ800 Φ800 Φ1000 Φ1000 Max.swing over cross slide mm Φ350 Φ350 Φ480 Φ480 Φ710 Φ710 Max.swing over in gap mm - Φ800 - Φ1000 - Φ1230 Gap length (From spindle nose) mm - Φ350 - Φ350 - φ350 Max workpiece length mm 1000/1500/2000/3000/4000/5000/6000 Max.turning length mm CW61: +150mm, CW62:+400mm Spindle nose C11 Spindle bore mm Φ100(C11) Chuck size mm Φ315 Φ315 Φ400 Φ400 Φ400 Φ400 Taper of spindle bore 120 (1:20) Max. Spindle torque Nm 2400 Spindle speed ranges rpm 7.5-1000(18 speeds) Spindle centre height mm 315 315 400 400 515 515 Spindle motor power 11KW 1460r/min(50HZ) Tailstock quill diameter mm Φ100 Tailstock quill travel mm 250 Tailstock quill taper No 6MT Longitudinal feed mm/r 1/1 0.1-1.52 (64 speeds) Cross feed Cross feed is 1/2 times of longitudinal feed Metric Pitch mm 0.5-240 (52kinds) Modular Pitch mm 0.5-120 (53kinds) Imperial Pitch TPI 28-1 (34kinds) Diametrical Pitch DP 38-1 (24kinds) Max.tool shank size mm 30*30 Travel of top slide mm 200 Swivel angle of top slide ±90° Machine overall dimensions mm 3180*1340*1830 3180*1380*1830 3180*1460*1830 Machine weight kg 3900/4200/4500/5000 4100/4400/4700/5200 4350/4650/4950/5450 *Inch screw lathee
Standard configurations
·3-Jaw chuck ·4-way tool post ·Standard toolkit ·φ20~φ170mm Steady rest (63E≥3000mm Available) ·φ40~φ250mm Steady rest (80E≥3000mm Available) ·φ150~φ400mm Steady rest (100E≥3000mm Available) ·φ20~φ100mm Follower rest (63E≥3000mm Available) ·φ20~φ130mm Follower rest (80E≥3000mm Available) ·φ20~φ160mm Follower rest (100E≥3000mm Available)
Optional configurations
·4-Jaw chuck ·Foot brake(1000mm~3000mm Available) ·Chuck guard ·German type quick-change tool post ·Tool post guard ·ltaly type quick-change tool post ·Rear splash guard ·Ballscrew cover ·Steel shields ·Live center ·Face plate(CW-62xxE) ·Thread dial ·Vertical hard stop ·Anchor bolt ·Steady rest\Follower rest(<3000mm Available)
