AGS-I-7008S Single direction X-ray Foreign Ojects inspection Equipment

Reference price

$ 1111111

The equipment is widely used in Shoes factory, Garment factory, Bag factory,Toy factory,etc., which can detect defective products Efficiently and accurately.

Model
- Large machines

Quantity

Stock

Add to cart

Buy Now

Message inquiry

隐藏域元素占位

Details

Commodity name: AGS-I-7008S Single direction X-ray Foreign Ojects inspection Equipment
Commodity ID: AGS I 7008S

The equipment is widely used in Shoes factory, Garment factory, Bag factory,Toy factory,etc., which can detect defective products Efficiently and accurately.

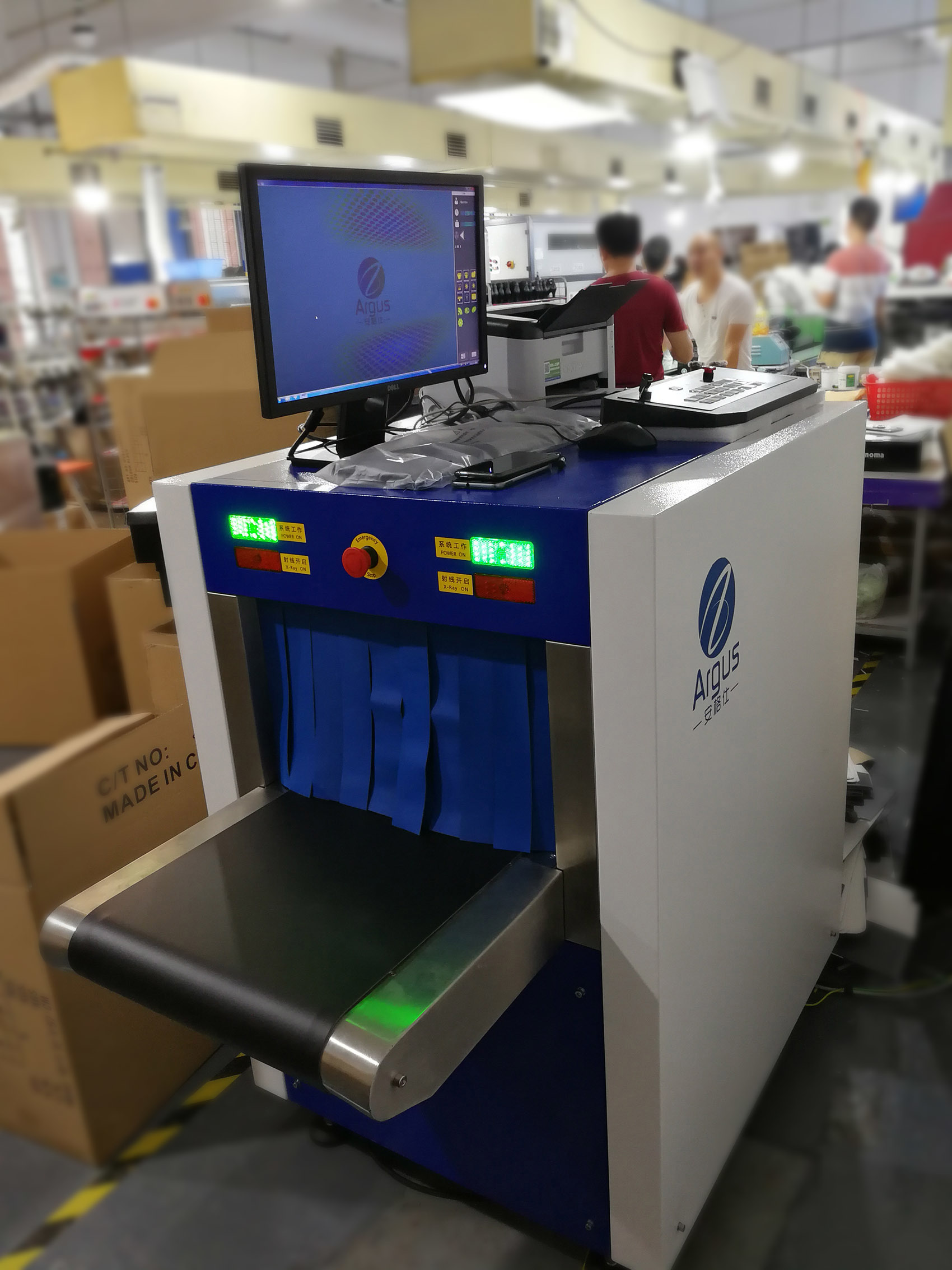

▌Equipment display

AGS I 7008S

▌Working principle

Sector detection imaging technology

The newly 0°~60°angle sector scanning imaging technology is more comprehensive than traditional linear scanning lechnology. which can avoid Blind angle completely.

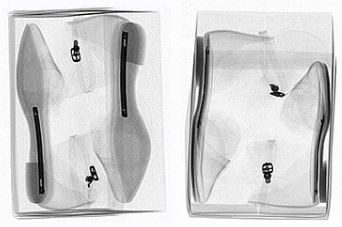

High resolution image

The equipment adopts the high-definition imaging system imported from Japan Via special image procesing. which can dentily the foreign objects cleatly, and the ergonomic principle reading system s more eflective in preventing the missed inspection from wisual fatigue.

Multi view mode selection
Black-and-white/color switching. function. reverse. display. function. partially. and continuous enlargement functions. can be used to select dfferent wlew modes according to the user requirements.To meet the requirementis of mulliple industries,multiple fypes of producis. multiple visual.

The operation interface is clear and the operation procedure is simple
Chinese/English operating system, one button On/Oft, easy to learn, strong maneuverability. avoid malfunction caused by improper operation.

AGS

▌Product structure diagram

AGS I 7008S

▌Range of application

The equipment is widely used in Shoes factory, Garment factory, Bag factory,Toy factory,etc., which can detect defective products Efficiently and accurately.

▌Advantage

·The speed of the convey or belt is 12m/min

·The detection accuracy isφ0.4mm stainless steel wire

·Multiple view mode selection.

·High definition view for 0.3mm, simple steps.

▌Parameter

Item	AGS-I-7008S	AGS-I-8008S	AGS-I-9008D
		AGS-I-8008D
X-ray generator	Single X-ray generator	Single X-ray generator	Double X-ray generator
		Double X-ray generator
Tunnel Size	505*305mm	505*305mm	700*310mm
Conveyor belt Speed	12m/min	24m/min	24m/min
Angle of Irradiation	90°(0°-60°)	90°(0°-60°)	15°(0°-60°)&-15°(60°-0°)
		90°(0°-60°)&70°(0°-60°)
Monitor	LCD22’’(1 set)	LCD22’’(2 sets)	LCD24’’(2 sets)
Min detectable diameter	Φ0.3mm	Φ0.2mm	Φ0.2mm
Curtain	4sets (without lead)	6sets (without lead)	4sets (without lead)
Size	16901210790mm	23501210885mm	19601220970mm
Weight	400kg	500kg/550kg	750kg
Rated power	＜0.5KVA	＜0.8KVA	＜1KVA
General Parameter
Power supply	220V/50HZ
Inspected articles weight	50kg(max)
Inspected articles length	90cm(max)
Hard disk space	1TB
Leakage	＜1μSV/H（at 5cm from external housing）
X-ray current	0.5mA~1mA
Print	Yes
Operating system	Windows 7
Operating Temperature	0°C~45°C
Storage Temperature	20°C~60°C
Operating Humidity	20%~95% Non condensation
Storage Humidity	20%~95% Non condensation
X-ray Voltage	50KV~80KV
Selection	1. label printer
	2. High definition display
	3. Regulated power supply
	4. Pulley operation desk
