VDL Vertical Machining Center
Reference price
$ 9999999
-
Model
- Large machines
Stock
2
隐藏域元素占位
- Details
-
- Commodity name: VDL Vertical Machining Center
- Commodity ID: VDL Vertical Machining Center
▌Introduction

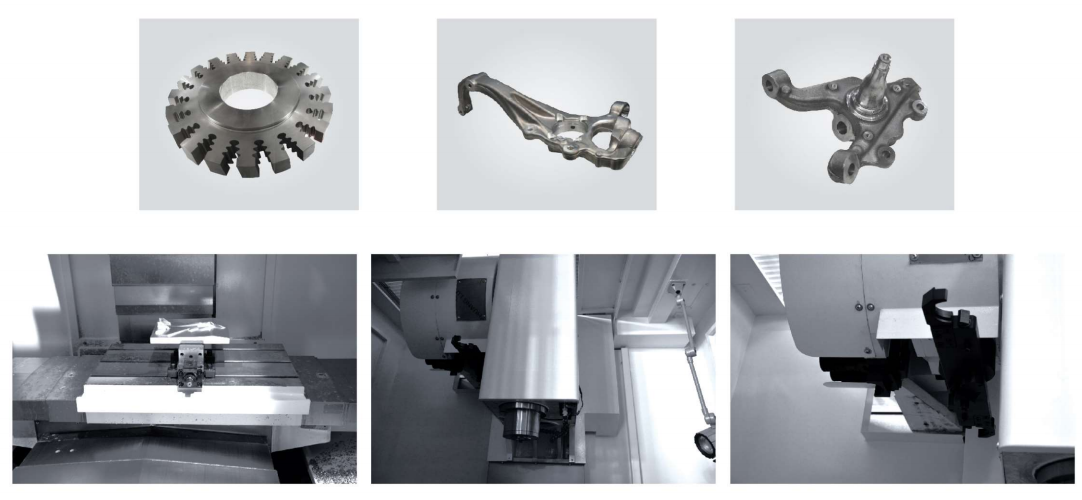

VDLVDF Series Vertical Machining Center is a domestic leading and international advanced vertical machining center developed and manufactured by our company. It is widely used in the processing of box parts, shell parts, disc parts, plate parts, special-shaped parts and precision parts in aerospace, automobile, die and mechanical manufacturing industries. The machine tool is equipped with automatic tool exchange system (ATC), integral protective cover, automatic lubrication system, cooling system, automatic chip removal device and portable manual operation device (MPG). Milling, boring, dilling, expanding, reaming and tapping can be automatically accomplished by one clamp. It has the advantages of high automation, high reliability, simple operation, convenience, pleasant, beautiful overall shape, high degree of mechatronics and so on.
▌Parameters
Specification
Unit
VDL600A
VDL850A
VDL1000
VDF850A
Worktable size(L*W)
mm
800*420
1000*500
1120*560
1000*500
T-slots(N*W*Centre distance)
mm
3*18*125
5*18*100
5*18*100
5*18*100
Max.table load
kg
500
500
750
500
Spindle center to column front surface
mm
550
575
629
575
Spindle nose to table top surface
mm
140-680
145-705
125-745
145-705
X/Y/Z axis travels
mm
620/440/540
860/510/560
1040/580/620
860/510/560
X/Y/Z Guide way type
Linear Way
Linear Way
X/Y:Linear Way
Z: Sliding way
Sliding way
X/Y/Z Rapid traverse
m/min
24/24/20
24/24/20
24/24/18
24/24/20
Cutting feed
mm/min
0-10000
0-10000
0-10000
0-10000
Max. Spindle speed
r/min
8000
8000
8000
8000
Spindle taper
No.40(7/24)
No.40(7/24)
No.40(7/24)
No.40(7/24)
Automatic tool changer capacity/type
16/Carousel
20/Carousel
20/Carousel
20/Carousel
Tool shank/retention knob type
BT40-45°
BT40-45°
BT40-45°
BT40-45°
Max tool weight
kg
8
8
8
8
Max tool diameter
(adjacent full/empty)
mm
T16:φ100/φ130
T20:φ100/φ130
T20:φ100/φ130
T20:φ100/φ130
Tool change time(T-T)
Sec
T16:5-8
T20:5-8
T20:5-8
T20:5-8
X/Y/Z Axis Positioning Accuracy
mm
0.014/0.011/0.014
0.018/0.011/0.014
0.018/0.014/0.014
0.018/0.011/0.014
X/Y/Z Axis Repeatability
mm
0.006/0.004/0.006
0.007/0.004/0.006
0.007/0.006/0.006
0.007/0.004/0.006
Control System
FANUC 0i-MF(5)
FANUC 0i-MF(5)
FANUC 0i-MF(5)
FANUC 0i-MF(5)
Air pressure requirement
MPa
0.6-0.8
0.6-0.8
0.6-0.8
0.6-0.8
Overall dimension (L*W*H)
mm
2413*2451*2549
2499*2496*2679
2800*2651*2650
2499*2496*2679
Machine weight
kg
4600
5600
7000
5600
Standard configurations
·Totally-contained enclosure ·Bamboo Hat ATC ·Auto lube system ·Spindle air purge system ·Compact oil-water separator ·Heat exchanger for electrical cabinet ·Alarm signal light ·Work- piece chilling system ·Handle chip removal air gun ·Rigid Tapping ·RS-232 port with DNC capability
Optional configurations
·High speed spindle cartridge ·24T Arm Type ATC ·Coolant unit with chip flush ·Spindle oil-chiller unit ·Electrical cabinets thermal stabilizer system ·Programmable 4th axis rotary table ·Center through-coolant spindle and high-pressure chiller ·Auto tool detector device ·PoweroffatM30
