Commodity name: ZLS-2iC Two Stage Compression PM VSD Compressor
Commodity ID: ZLS-2iC Two Stage Compression PM

▌Introduction

The four-generation high-efficiency air-end adopt by the JAGUAR ZLS-2iC series compressor features energy-efficiency, stable running, the compressor was widely applied in manufacturing, automobile, electricity, medicine, textiles, photovoltaic, semiconductors industries. The compressor with remarkable energy-saving and consumption reduction help the enterprise achieve the aim of reducing cost and increasing efficiency.
Power: 22kw-250kw

rotary screw air compressor
PM VSD screw air compressor
screw air compressor
air compressor
Compressor

▌Product details

Jaguar ZLS-2iC all series compressor choose IE4 high efficiency permanent magnet motor, compare with normal asynchronous motor, the PM motor features ultra-efficiency, compact structure, lower noise, small volume lightweight. Motor efficiency increased and stable running assures by the PM motor. Coaxial transmission makes the PM motor transmission could reach 100% in the meantime without gearbox, without motor bearing and maintenance fee.

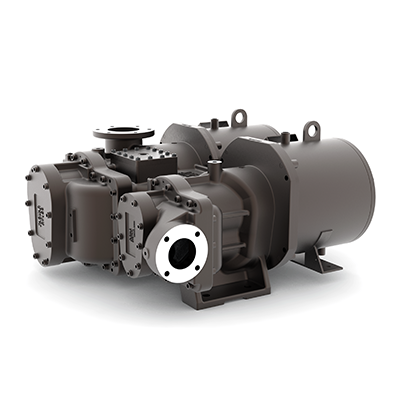

Fourth generation efficient host

The optimized integrated two-stage compression air-end has reasonable structure and low vibration. All air and oil circuits are integrated inside of the air-end, within a beautiful and elegant outlook and reducing leakage. The coaxial designed air-end without a gearbox makes a high-efficiency transmission, the motor without bearing is maintenance-free.

The design of the built-in pipeline is more compact. We reduce the bellows between the first and second stage air-end, reducing pressure loss. The optimized built-in main oil injection pipe, bearing lubrication, and oil return pipe achieves a good cooling effect. The leakage and pipe vibration were avoided due to reducing most of the outside pipelines.

Fully intelligent drive

The touch screen with new CPU has a fast speed than ordinary controller, The built-in IoT module can upgrade the loT at any time, The 7-inch touch screen is more convenient than button controller, The touch screen with a 2-way communication interface, 4-way analog quantity, 14-way switch quantity, the output signal is more comprehensive, The integrated PLC has a powerful control function.

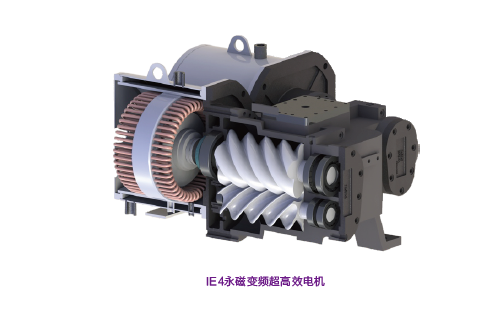

IE4 super efficient motor

Jaguar ZLS-2iC series compressor equips IE4 ultra-efficiency permanent magnet motor, the electromagnetism scheme was optimized, the efficiency increased by 5~10%, reducing the consumption of electricity and the cost of the user. Compact with the normal asynchronous motor, the permanent magnet motor has the advantages of ultra-efficiency, compact structure, small size and light weight. Since the permanent magnet motor cancels the electric Excitation System, the motor with high efficiency, compact structure and reliable operation.

Permanent magnet VSD motor conforming to IEC 60034-30:2008. Assured by the professional certification authority.

▌Parameters

Model	Mpa	Exhaust volume/exhaust pressure	Power	Noise	Exhaust port pipe diameter	Pipe diameter of cooling water inlet	Cooling water flow	Weight	Size
		m³/min	kw/HP	dB(A)	inch		inch	KG	(WHmm)
ZLS30-2iC	0.7	4.7	22/30	63±2	G1-1/2''	3/4''	80	660	140010751320
	0.8	4.4
	1	4
	1.25	3.6
ZLS40-2iC	0.7	6.4	30/40	64±2	G1-1/2''	3/4''	80	800	166011501480
	0.8	5.9
	1	5.2
	1.25	4.6
ZLS50-2iC	0.7	7.5	37/50	64±2	G1-1/2''	3/4''	80	950	166011501480
	0.8	7.1
	1	6.2
	1.25	5.5
ZLS60-2iC	0.7	9.6	45/60	65±2	G2''	1''	200	1100	175012801600
	0.8	9.2
	1	8.6
	1.25	7
ZLS75-2iC	0.7	12.6	55/75	70±3	G2''	1'	200	1300	175012801600
	0.8	11.9
	1	10.3
	1.25	8.6
ZLS100-2iC	0.7	17	75/100	71±3	G2''	1-1/2''	200	1650	180013001700
	0.8	15.6
	1	12.6
	1.25	11.5
ZLS125-2iC	0.7	20.3	90/125	73±3	DN65	1-1/2''	200	2500	280016501800
	0.8	19.3
	1	17.3
	1.25	15.3
ZLS150-2iC	0.7	24.2	110/150	74±3	DN80	1-1/2''	200	3000	280016501800
	0.8	23.2
	1	21
	1.25	17.3
ZLS175-2iC	0.7	29.1	132/175	74±3	DN100	2''	300	3650	320018002050
	0.8	27.7
	1	24.7
	1.25	22.1
ZLS200-2iC	0.7	36.3	160/200	75±3	DN100	2''	300	4376	380020002050
	0.8	33.6
	1	30.2
	1.25	28.1
ZLS250-2iC	0.7	41.2	185/250	79±3	DN100	2''	400	5000	380020002050
	0.8	38.9
	1	34.5
	1.25	32.1
ZLS275-2iC	0.7	45.9	200/275	79±3	DN125	2''	400	5100	420023002200
	0.8	42.5
	1	40.1
	1.25	38
ZLS300-2iC	0.7	48.6	220/300	80±3	DN125	2''	400	5300	420023002200
	0.8	47.2
	1	42.5
	1.25	40
ZLS350-2iC	0.7	56.1	220/300	80±3	DN125	DN65	400	6400	420023002200
	0.8	54.1
	1	46.7
	1.25	43.5
ZLS375-2iC	0.7	60	250/350	82±3	DN125	DN65	400	7500	420023002200
	0.8	57.2
ZLS420-2iC	0.7	68	315/420	82±3	DN125	DN65	400	7800	450025002350
	0.8	62.5
ZLS475-2iC	0.7	73	355/475	86±3	DN150	DN65	400	8500	450025002350
	0.8	69.1

▌Configurattion diagram

▌Manufacturing technique

1.High Precision CBN Grinding Machine
2.Imported DMG MORI CNC Horizontal machining Center
3.Imported German Zeiss CMM Measuring Center
4.Imported Italian Salvagnini Dynamic Laser Cutting Machine
High Precision Equipment for manufacturing High Precision Screw Rotors EAMI uses professional high-precision manufacturing equipment, to ensure high standard design requirements, The screw screw rotor is grinded with high precision, and the machining precision reaches 0.005mm. The surface roughness reaches Ra0.1-0.2um.

▌Application
