AGS-I-9008D Dual View X-ray Foreign Ojects Detection Equipment

Reference price

$ 1111111

The foreign body detection equipment is widely used in Shoes factory, Garment factory,Bag factory and Inspection company. Can detect Broken needle and other defective products.

Model
- Large machines

Quantity

Stock

Add to cart

Buy Now

Message inquiry

隐藏域元素占位

Details

Commodity name: AGS-I-9008D Dual View X-ray Foreign Ojects Detection Equipment
Commodity ID: AGS-I-9008D

The foreign body detection equipment is widely used in Shoes factory, Garment factory,Bag factory and Inspection company. Can detect Broken needle and other defective products.

▌Equipment display

Continuous package passing

AI automatic identification of foreign matters

Conveyor belt linkage function

▌Range of application

The foreign body detection equipment is widely used in Shoes factory, Garment factory,Bag factory and Inspection company. Can detect Broken needle and other defective products.

▌Advantage

·The speed of the convey or belt is 24m/min.

·The detection accuracy isφ0.2mm stainless steel wire.

·Four-angle combined projection.

Double screen and double graph display.

International testing standard：
The Iron needle diameter detection range isφ0.2-φ0.8,
The minimum detection diameter isφ0.2mm

▌Parameter

Item	AGS-I-7008S	AGS-I-8008S	AGS-I-9008D
		AGS-I-8008D
X-ray generator	Single X-ray generator	Single X-ray generator	Double X-ray generator
		Double X-ray generator
Tunnel Size	505*305mm	505*305mm	700*310mm
Conveyor belt Speed	12m/min	24m/min	24m/min
Angle of Irradiation	90°(0°-60°)	90°(0°-60°)	15°(0°-60°)&-15°(60°-0°)
		90°(0°-60°)&70°(0°-60°)
Monitor	LCD22’’(1 set)	LCD22’’(2 sets)	LCD24’’(2 sets)
Min detectable diameter	Φ0.3mm	Φ0.2mm	Φ0.2mm
Curtain	4sets (without lead)	6sets (without lead)	4sets (without lead)

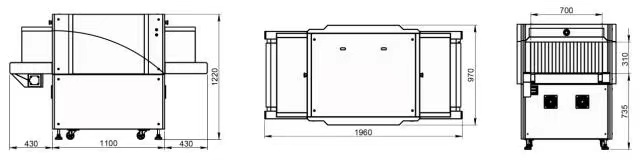

Size	16901210790mm	23501210885mm	19601220970mm
Weight	400kg	500kg/550kg	750kg
Rated power	＜0.5KVA	＜0.8KVA	＜1KVA
General Parameter
Power supply	220V/50HZ
Inspected articles weight	50kg(max)
Inspected articles length	90cm(max)
Hard disk space	1TB
Leakage	＜1μSV/H（at 5cm from external housing）
X-ray current	0.5mA~1mA
Print	Yes
Operating system	Windows 7
Operating Temperature	0°C~45°C
Storage Temperature	20°C~60°C
Operating Humidity	20%~95% Non condensation
Storage Humidity	20%~95% Non condensation
X-ray Voltage	50KV~80KV
Selection	1. label printer
	2. High definition display
	3. Regulated power supply
	4. Pulley operation desk

▌Working principle

Dual x-ray generators scannin

Continuous scanning imaging with dual x-ray generator can completely eliminate the missing inspection caused by the single scanning angle and the excessive thickness of the Products.

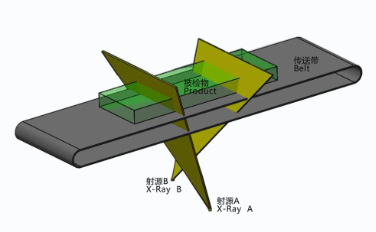

Four angles combined projection

X-ray A is projected at 15°, angular sector scanning at 0°-60°, and X-ray B is projected at -15°，angular sector scanning at 60°-0°, which can avoid blind angle completely.

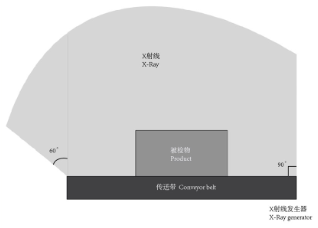

Sector detection technology

The newly 0 degree -60 degree angle sector scanning imaging technology is more comprehensive than traditional linear scanning technology, which can avoid blind angle completely.

Multi view mode selection
Black-and-white/color switching. function. reverse. display. function. partially. and continuous enlargement functions. can be used to select dfferent wlew modes according to the user requirements.To meet the requirementis of mulliple industries,multiple fypes of producis. multiple visual.

Double screen display

Four angle dual images, double screen display at the same time, intuitive and convenient, safe and fast.

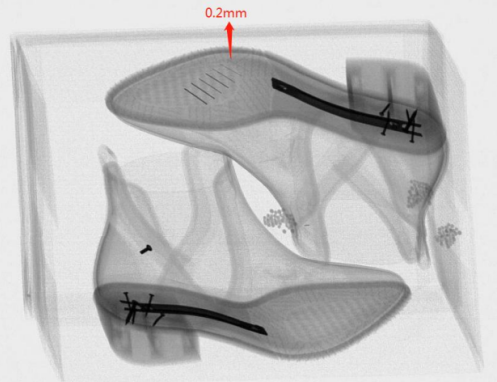

High resolution image

The equipment adopts the high-definition imaging system importedfrom Japan. Via special image processing, which Can identify the foreign objects clearly, and the ergonomic principle reading system is more effective in preventing the missed inspection from visual fatigue.

Simple operation step

Chinese/English operating system,one button on/off, easy to learn,strong. maneuverability， avoid malfunction caused by improper operation.
