AGS-I-8008D Dual View X-ray foreign matter inspection equipment

Reference price

$ 1111111

The equipment is widely used to inspect shoes, clothes, luggage, bags, handbags, Cordyceps, milk powder, chocolate, ham, ice cream, tin cans, plush toys, PVC, hardware accessories,electronic components, medicine and so on.

Model
- Large machines

Quantity

Stock

Add to cart

Buy Now

Message inquiry

隐藏域元素占位

Details

Commodity name: AGS-I-8008D Dual View X-ray foreign matter inspection equipment
Commodity ID: AGS-I-8008D

▌Range of application

Range of application

▌Working principle

Dual x-ray generators scannin

Continuous scanning imaging with dual x- ray generator can completely eliminate the missing inspection caused by the single scanning angle and the ecessive thickness of the Products.

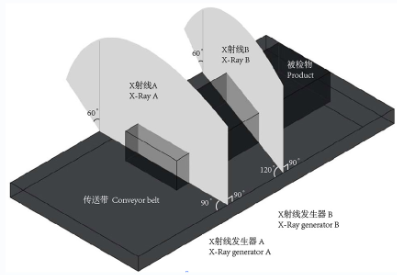

Four angles combined projection

X-ray A is projected at 90°, angular sector scanning at 0°-60°, and X-ray B is projected at 70°，angular sector scanning at 0°- 60°, which can avoid blind angle completely.

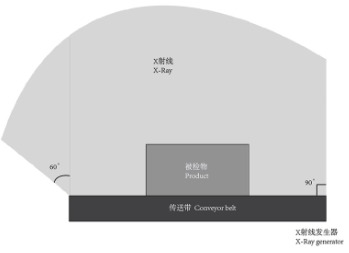

Sector detection technolog

The newly 0 degree -60 degree angle sector scanning imaging technology is more comprehensive, than traditional linear scanning Technology, which Can avoid blind angle completely.

Multi view mode selection
Black-and-white/color switching. function. reverse. display. function. partially. and continuous enlargement functions. can be used to select dfferent wlew modes according to the user requirements.To meet the requirementis of mulliple industries,multiple fypes of producis. multiple visual.

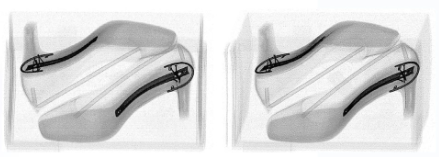

Double screen display

Four angle dual images, double screen display at the same time, intuitive and convenient, safe and fast.

High resolution image

The equipment adopts the high-definition imaging system importedfrom Japan. Via special image processing, which Can identify the foreign objects clearly, and the ergonomic principle reading system is more effective in preventing the missed inspection from visual fatigue.

Simple operation step

Chinese/English operating system,one button on/off, easy to learn,strong. maneuverability， avoid malfunction caused by improper operation.

AGS

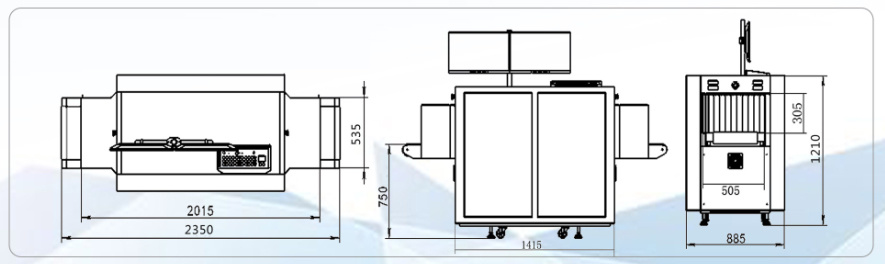

▌Product structure diagram

Product structure diagram

▌Advantage

·The ideal speed is 24m/min, which can improve production efficiency and save production cost.

·Capacitance integral analog -to- digital conversion, higher precision, clearer image,resolution up to 0. 2mm metal wife.

▌Parameter

Item	AGS-I-7008S	AGS-I-8008S	AGS-I-9008D
		AGS-I-8008D
X-ray generator	Single X-ray generator	Single X-ray generator	Double X-ray generator
		Double X-ray generator
Tunnel Size	505*305mm	505*305mm	700*310mm
Conveyor belt Speed	12m/min	24m/min	24m/min
Angle of Irradiation	90°(0°-60°)	90°(0°-60°)	15°(0°-60°)&-15°(60°-0°)
		90°(0°-60°)&70°(0°-60°)
Monitor	LCD22’’(1 set)	LCD22’’(2 sets)	LCD24’’(2 sets)
Min detectable diameter	Φ0.3mm	Φ0.2mm	Φ0.2mm
Curtain	4sets (without lead)	6sets (without lead)	4sets (without lead)
Size	16901210790mm	23501210885mm	19601220970mm
Weight	400kg	500kg/550kg	750kg
Rated power	＜0.5KVA	＜0.8KVA	＜1KVA
General Parameter
Power supply	220V/50HZ
Inspected articles weight	50kg(max)
Inspected articles length	90cm(max)
Hard disk space	1TB
Leakage	＜1μSV/H（at 5cm from external housing）
X-ray current	0.5mA~1mA
Print	Yes
Operating system	Windows 7
Operating Temperature	0°C~45°C
Storage Temperature	20°C~60°C
Operating Humidity	20%~95% Non condensation
Storage Humidity	20%~95% Non condensation
X-ray Voltage	50KV~80KV
Selection	1. label printer
	2. High definition display
	3. Regulated power supply
	4. Pulley operation desk
