Commodity name: M1332B Cylindrical grinder
Commodity ID: M1332B Cylindrical grinder

▌Introduction

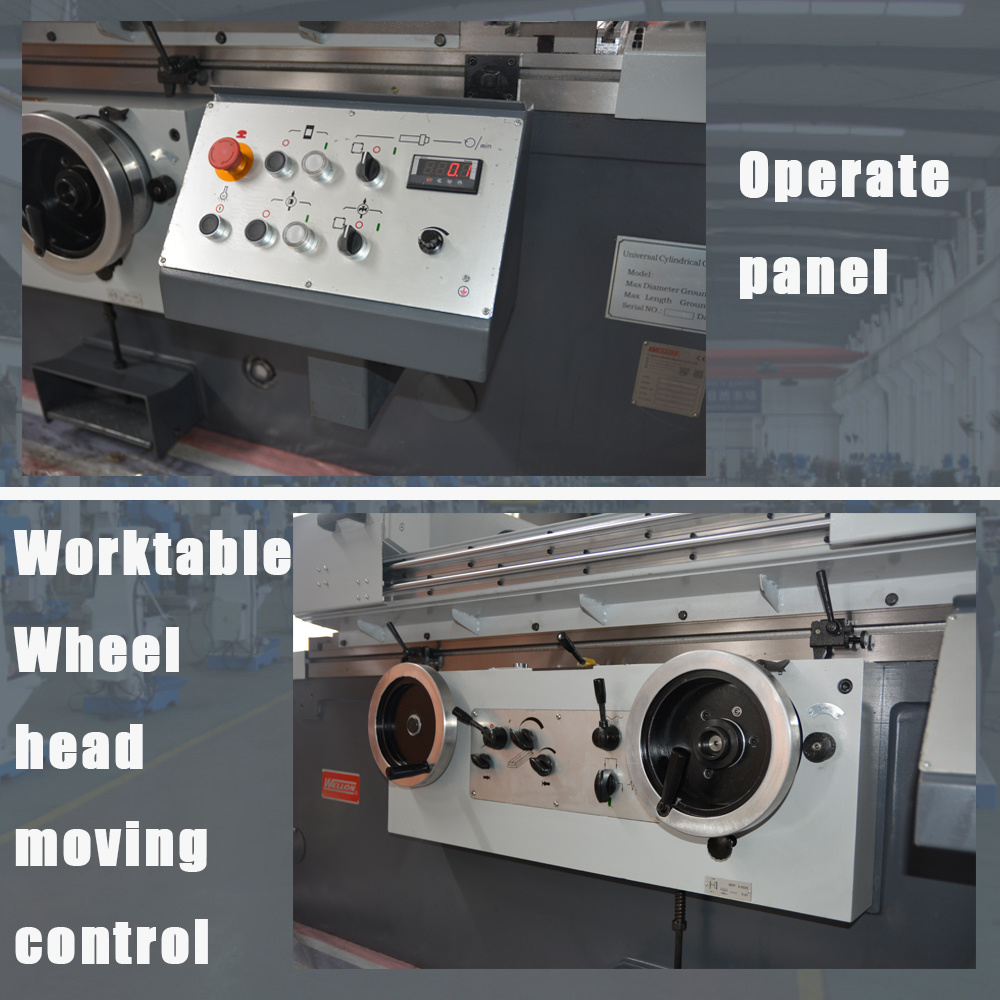

M1332B cylindrical grinder series is suitable for grinding cylindrical or conical rotary workpieces with IT6 to IT5 accuracy. This series of machine tools have six specifications with different distances of 500, 750, 1000, 1500, 2000 and 3000 ㎜, which can be selected by users according to their needs. Structural features: a. The longitudinal movement of the machine tool is driven by hydraulic stepless transmission, or by hand wheel. The lateral movement has hydraulic fast forward/backward and manual micro feed. b. The workpiece, grinding wheel, oil pump and cooling pump are driven by separate motors.

▌Characteristic
M1332B series cylindrical grinder is derived from MBl332B series semi-automatic cylindrical grinder. This series of machine tools are suitable for grinding cylindrical or conical rotary workpieces with IT6 to IT5 accuracy. This series of machine tools have six specifications with different distances of 500, 750, 1000, 1500, 2000 and 3000 ㎜, which can be selected by users according to their needs. Structural features: a. The longitudinal movement of the machine tool is driven by hydraulic stepless transmission, or by hand wheel. The lateral movement has hydraulic fast forward/backward and manual micro feed. b. The workpiece, grinding wheel, oil pump and cooling pump are driven by separate motors.

▌Parameter
Equipment parameters

Parameter	Unit	M1332B
Grinding diameter	mm	Φ8~φ320
Max.grinding length	mm	500/1000/1500/2000/3000
Max.workpiece weight	kg	150
Center height	mm	180
Wheel size	mm	Φ60075305
Wheel peripheral velocity	m/s	35

Equipment parameters

Model	Unit	M1332Bx1500
O.D Dia Scope	mm	8-320
Distance Between Top Center	mm	1500
Center Height	mm	180
O.D Max Length Grind	mm	1500
Max.weight of workpiece	KG	150
Work head Center Taper(MT)	MT	MT5
Work head Spindle Speed	r/min	29-260
Wheel Spindle Speed	r/mm	1100
Wheel Size(O.DxWxI.D)	mm	600x75x305
Peripheral Velocity	m/s	35
Hand Wheel Feed Per Revolution	mm	6

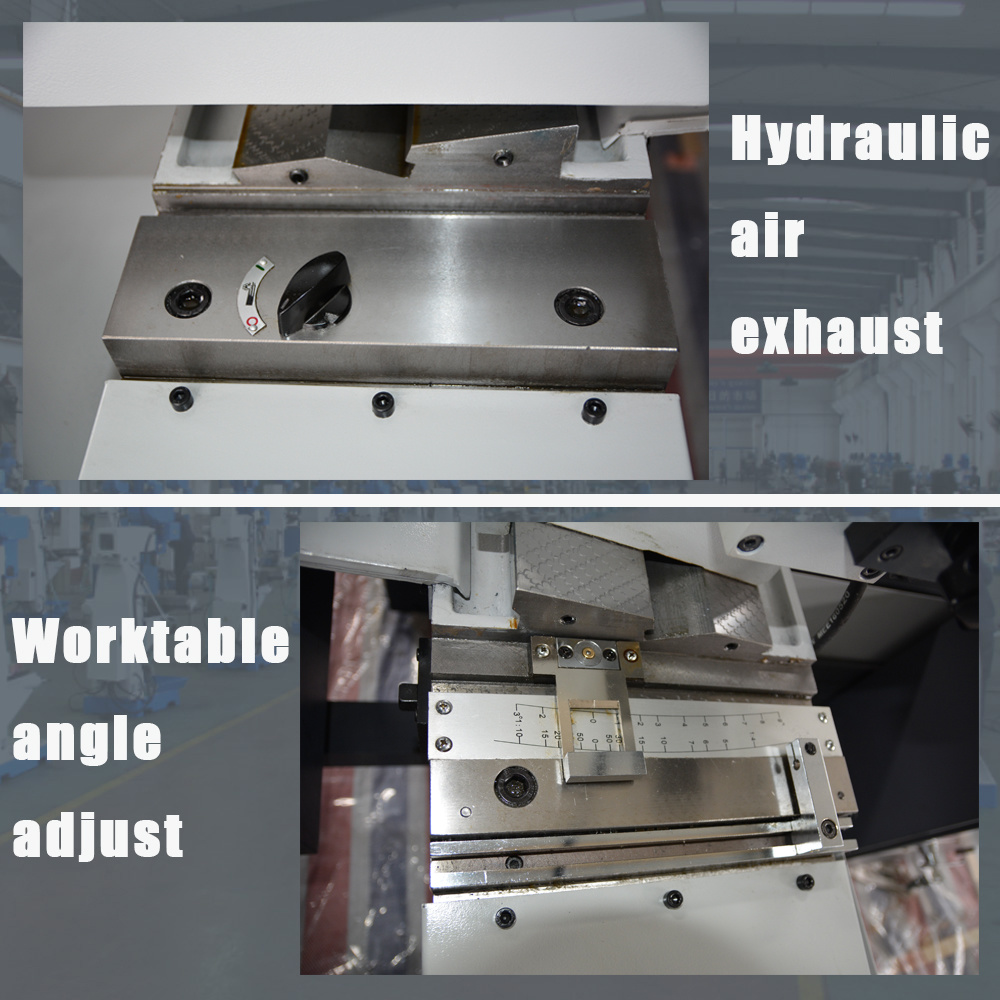

Max Swiveling Angle of Table		-3~+6°
Longitudinal Speed of Table	m/min	0.1~4
Tailstock Center Taper	MT	MT4
Quill Travel	mm	30
Wheel head Motor Power	KW	11
Work head Motor Power	KW	0.75/1.5
Machine Weight	KG	4600
Machine Size	cm	460x180x150
Working Accuracy
Roundness	μm	1.5
Uniformly of Inner Dia Longitudinal Section	μm	8
Surface Roughness	μm	Ra 0.6
Surface Waviness	μm	1
